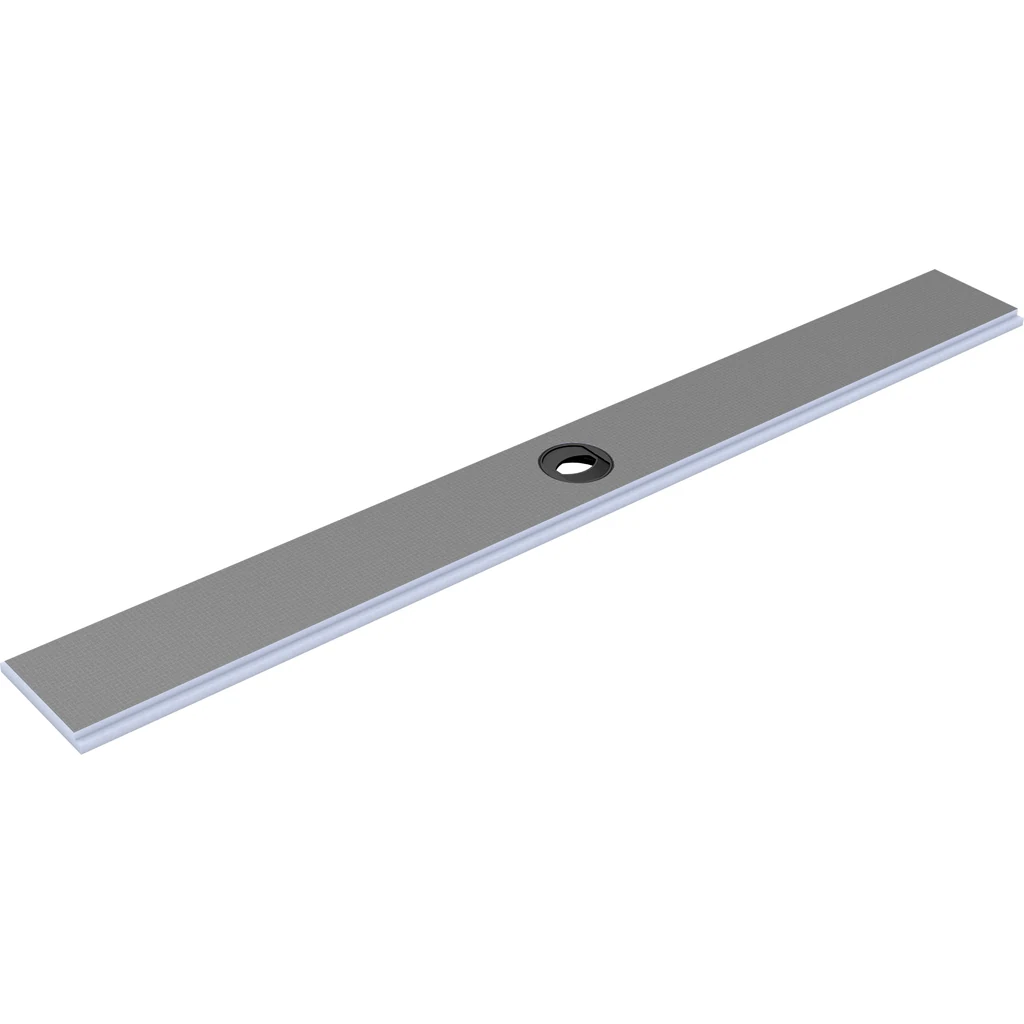

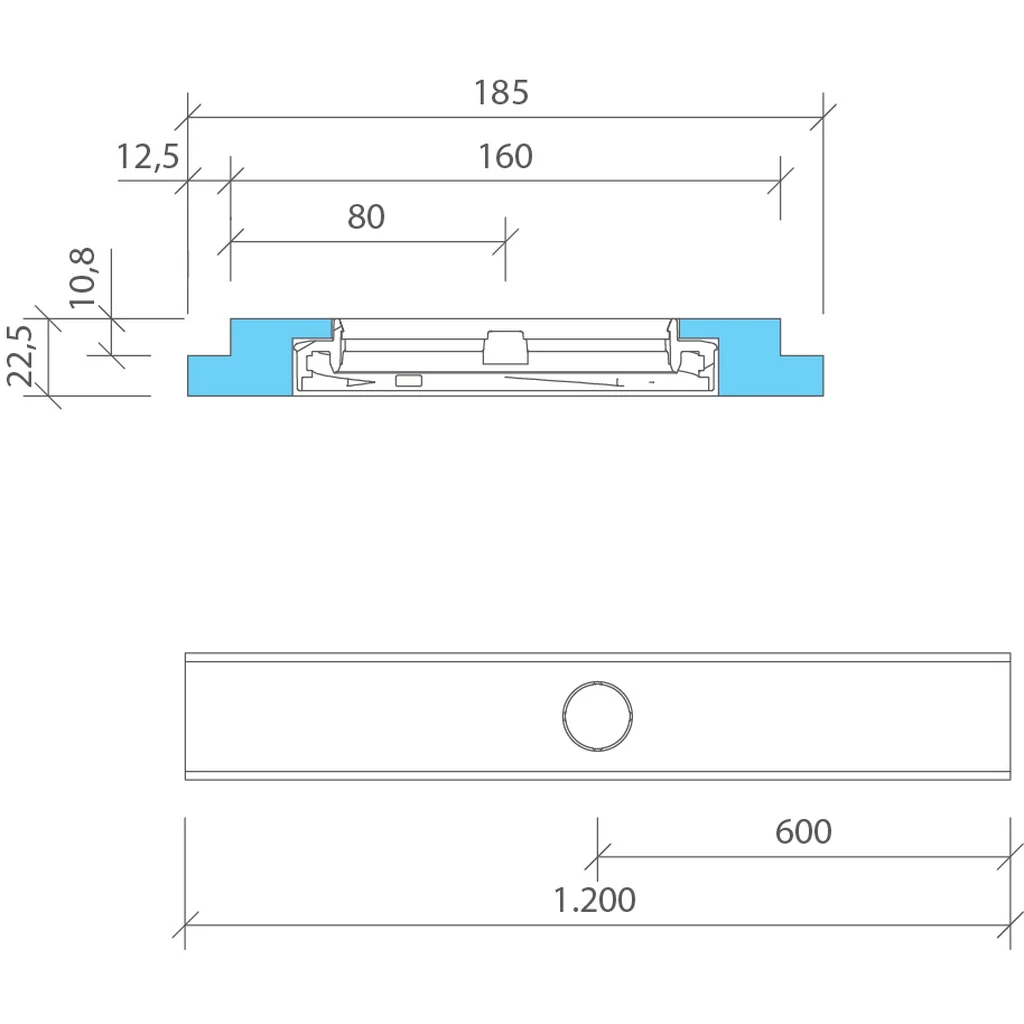

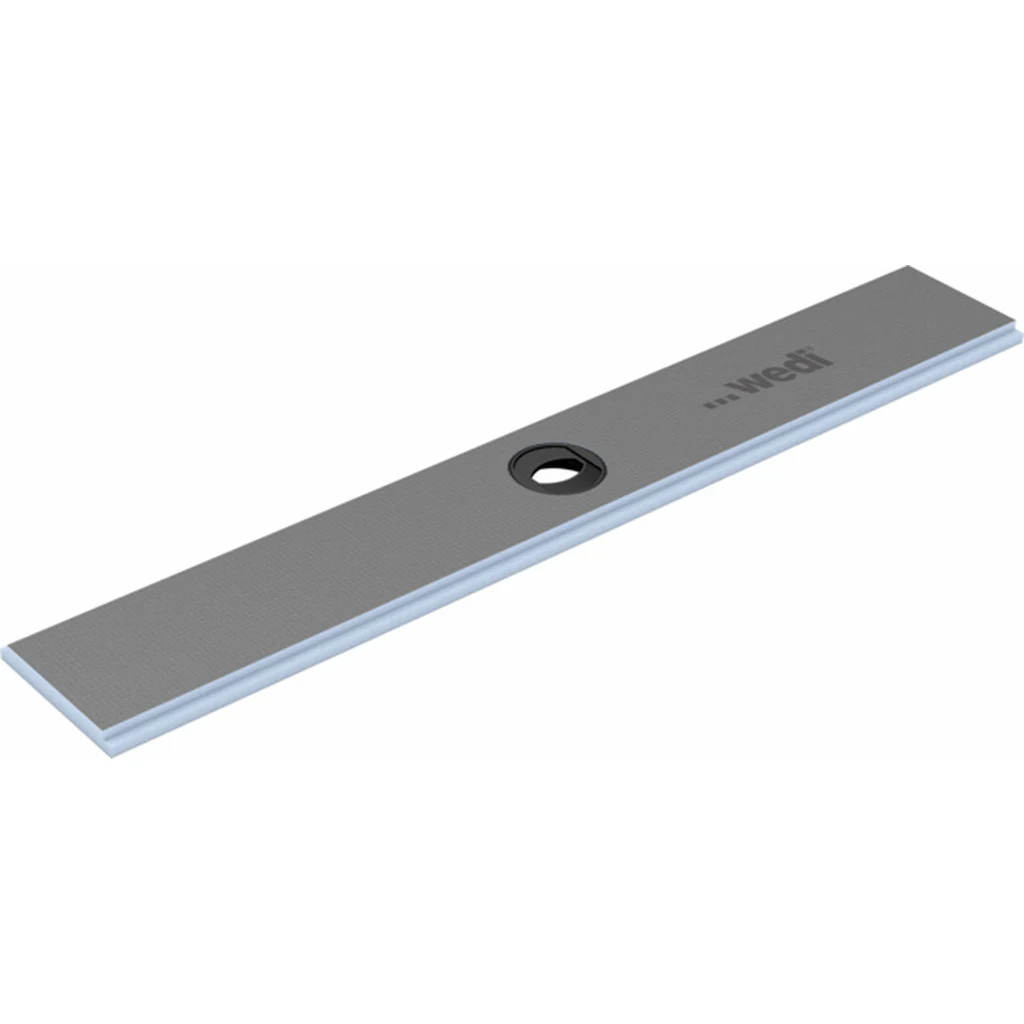

Fundo Flex Channel Element (1.200 x 160 x 22.5Mm)

The new linear shower drain solution is extrememly versatile; not noly suitable for any substrate and layout but also allows for exacting sleek design – thanks to the included eccentric, you can shift the position of the channel profile closer or further away from the wall!

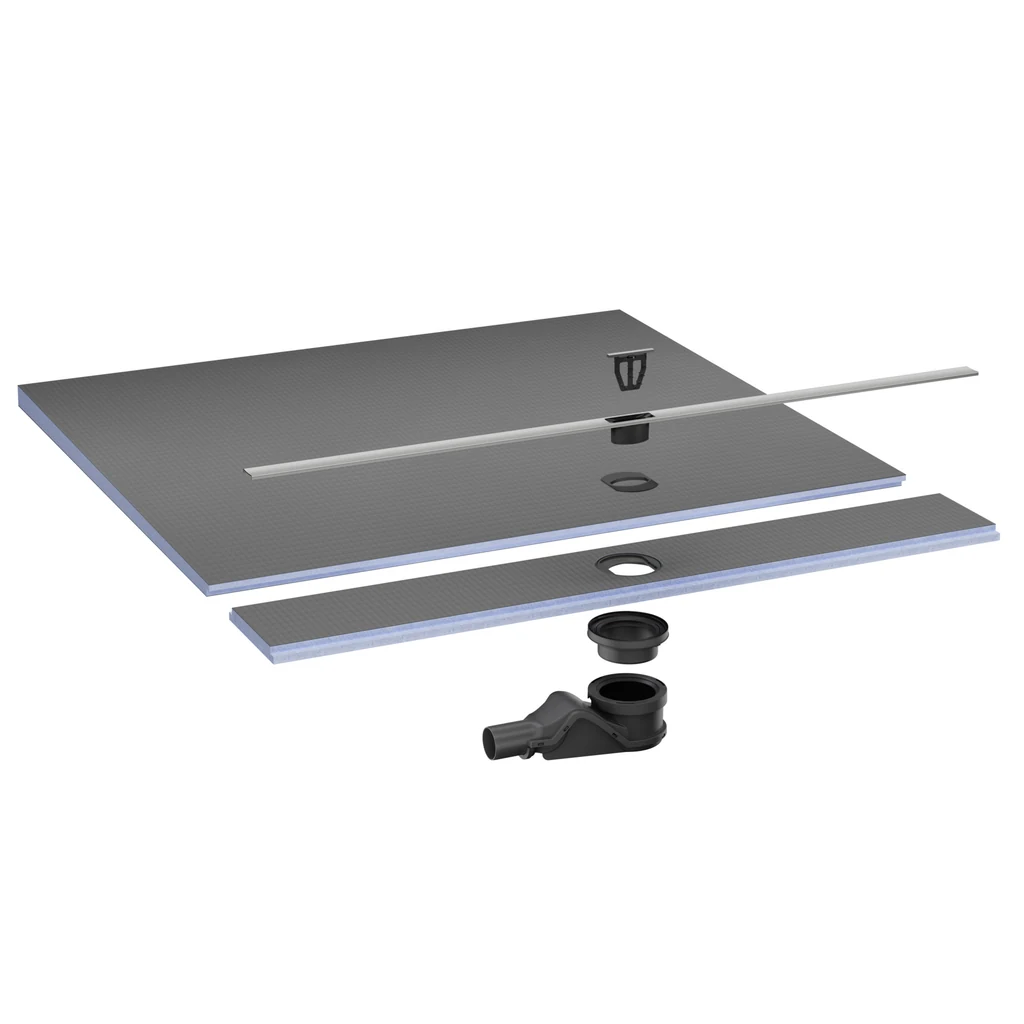

You can install it on its own in screed with membrane or liquid waterproofing applied over the surrounding floor, or, you can install it with complementary sloping boards in/on timber and concrete floors.

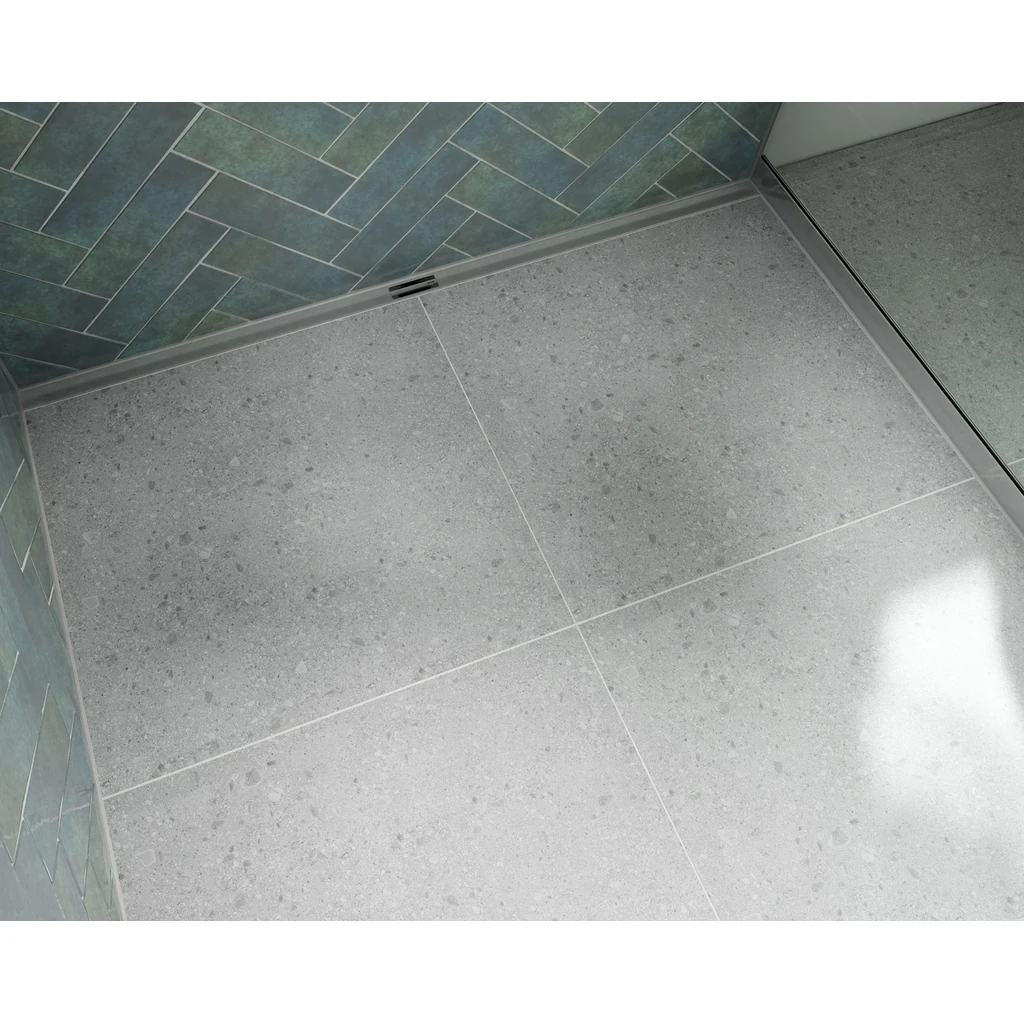

The channel element can be positioned along the long or short side, close to the wall, centrally, or
anywhere in between – with or without sloping boards, it is entirely up to you at which position to place the drainage!

Stepped rebates for precise integration of the complementary sloping boards ensuring a fully sealed, level shower floor.

What’s in the box?
1 x fundo flex channel element
1 x insert, pre-mounted

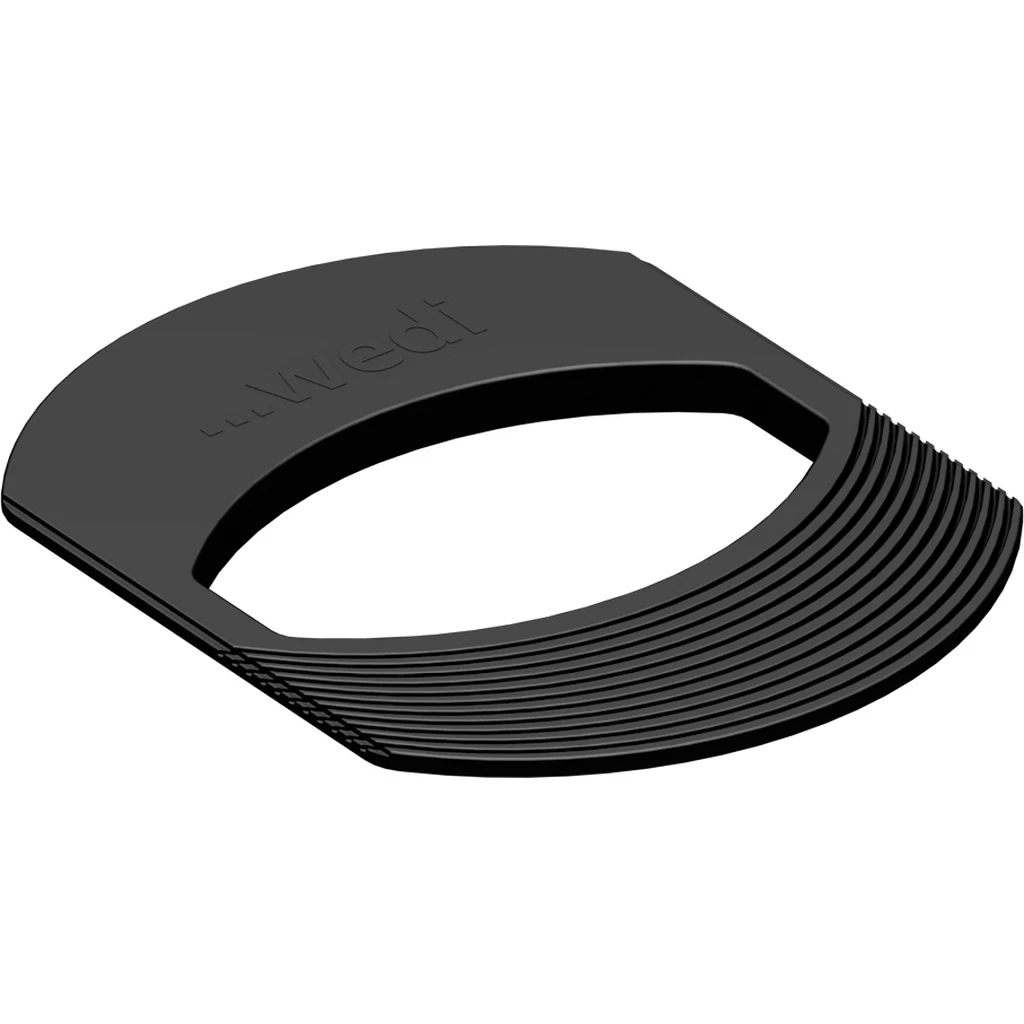

1 x eccentric, pre-mounted
1 x cap tool
1 x removal aid

Downloads:
Assembly Instructions
Technical Data Sheet
